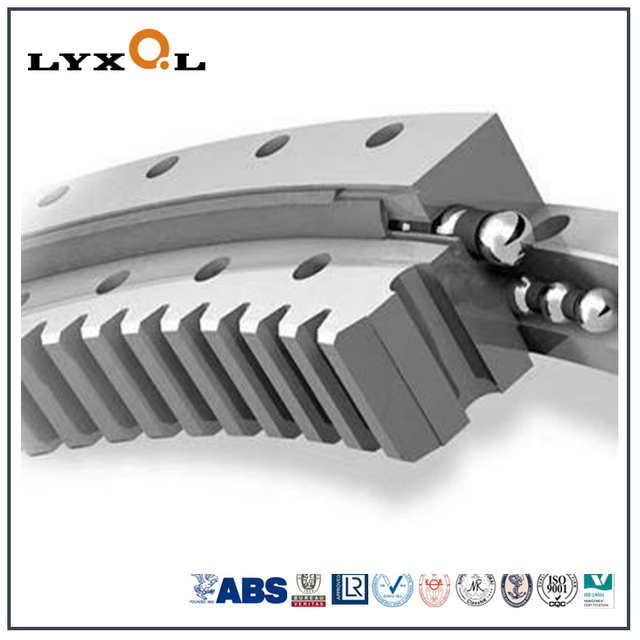

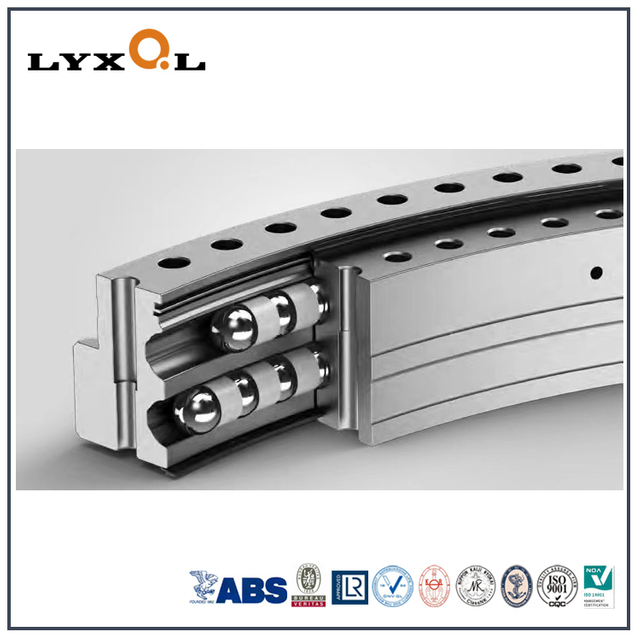

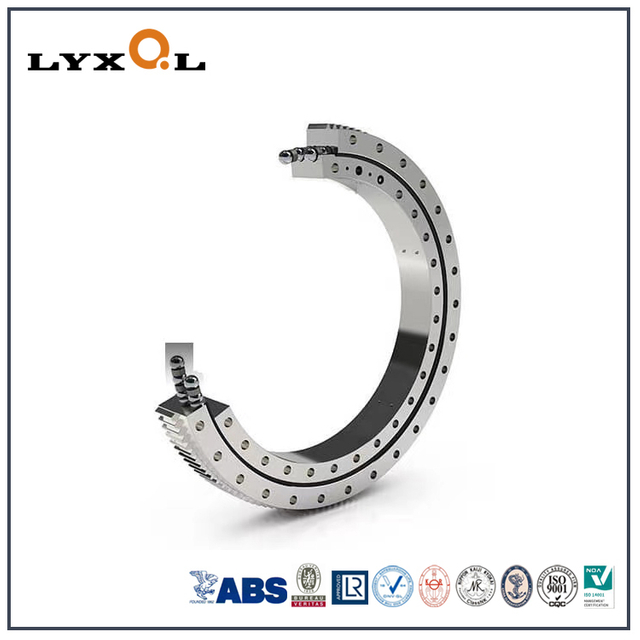

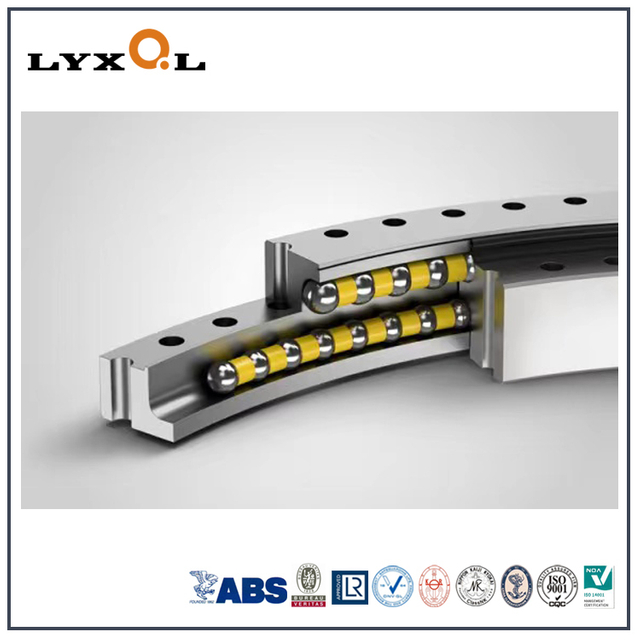

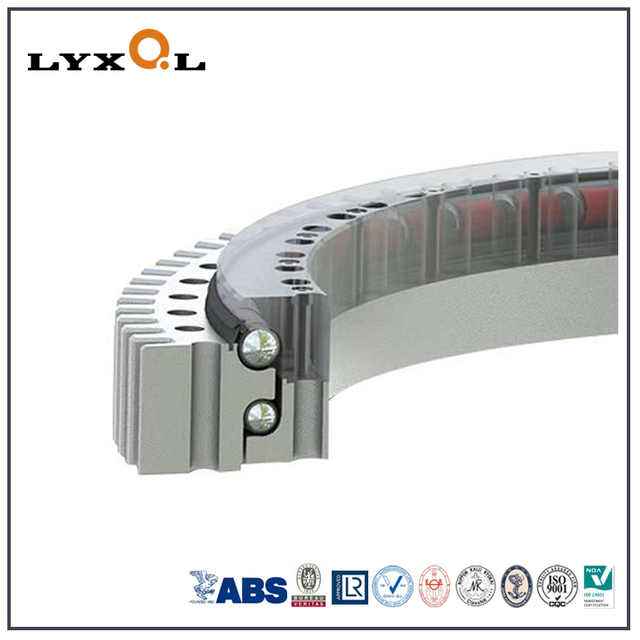

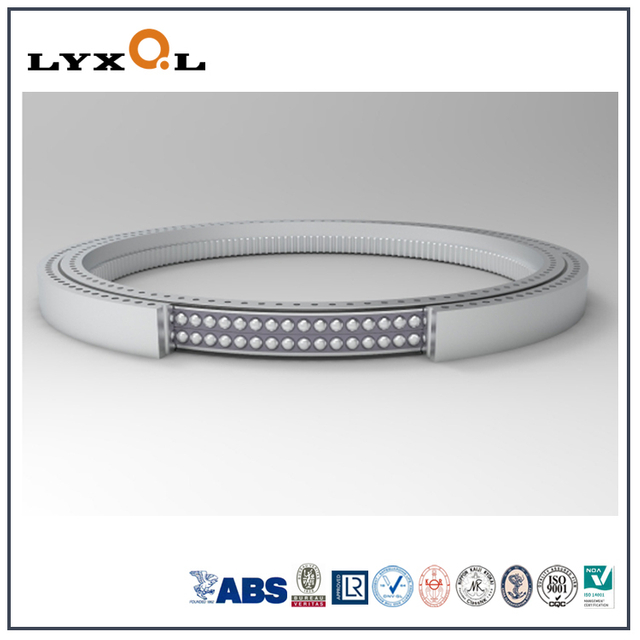

Double row ball slewing bearing is also called 8 point contact ball slewing ring bearing and two row ball slewing rings, it is composed of inner ring ,outer ring,rolling element, spacer and other components. The two-row ball slewing bearing has three seat-rings. The steel balls and the retainers may be directly arranged into the upper and lower racers. Two rows of steel balls with different diameters are fitted according to the force. Such open type fitting is extraordinary convenient, the loading angels at upper and lower races are 90 which can carry both of the axial force and capsizing moment. When the radial force is larger than 1/10 of the axial force, the races should be newly designed.
Gear type of two row ball slewing rings, according to the bearing gear type,it can be divided into 3 types, external gear, internal gear and non-gear type. the external gear and internal gear slewing ring bearing connected with a pinion and makes the machinery turns round, the gear teeth can be hardened to improve its wear resistance, hardness is usually HRC45-55.
Material of double row ball slewing ring bearing, all the raw material comes from domestic well know steel company, the outer ring and inner ring usually use C45, 50Mn, S48C, 42CrMo and other customized material, rolling elements such as balls and rollers use high quality chrome steel Gcr15 or Gcr15SiMn, for the cages or retainers, usually we use nylon, steel, alloy aluminum and etc, for the seals, usually NBR or VITON.
Application of double row ball slewing bearings, this kind of slewing ring bearings are widely used in Aerial Hydraulic Platforms, Band Conveyor,Excavators, Deck Cranes, Mobile Cranes, Shiploader/Unloader, Tidal Energy Plants, Tower Cranes, Truck Mounted Cranes, Wind Energy Plants
Packing of 8 point contact ball slewing ring bearings, Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;And then packed with craft paper and professional belts; At last, with wooden box totally at the outer packing to invoid the rust or the moist; We can depend on the customers demand to be packed;
