1) Drive system bearings: wind turbine main bearings, gearbox bearings and generator bearings. The main shaft of wind turbine generator is also called low-speed shaft or impeller shaft, which plays the role of connecting impeller and gearbox or generator, and transmitting torque. The main shaft is supported by the main shaft bearing, so the force and deformation on the main shaft affect the main shaft bearing. The force mainly includes the weight of the wind blade and hub, the weight of the main shaft, the bearing force of the main shaft bearing, the thrust force of the thrust bearing, and the force of the wind acting on the main shaft through the wind blade and hub. Therefore, the main shaft bearing mainly bears the radial force, and also the axial force generated by the wind force. The gearbox plays a role in raising the lower speed transmitted by the rotating blades to the rated speed of the generator; In addition, the wind turbine completes the conversion of mechanical energy to electrical energy, and the internal structure also uses bearings.

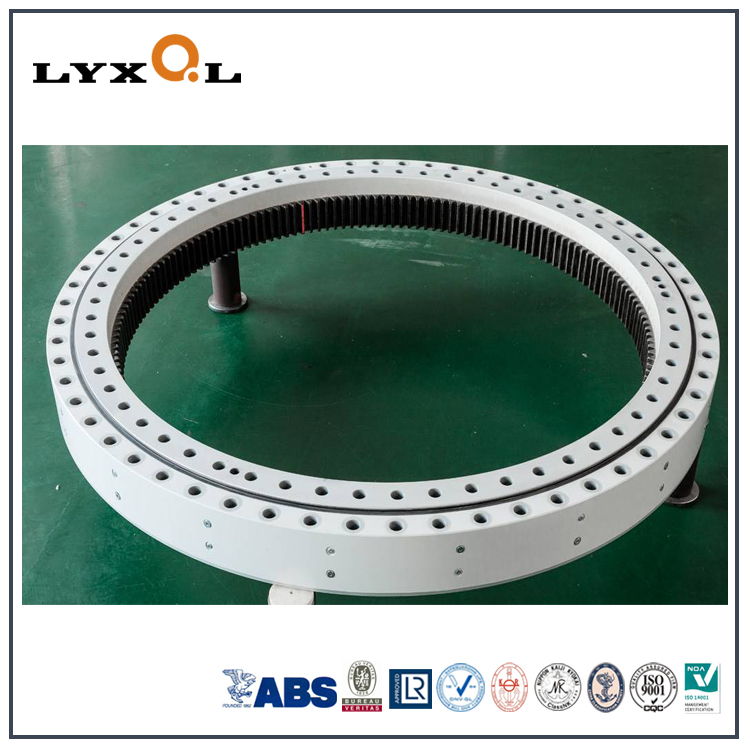

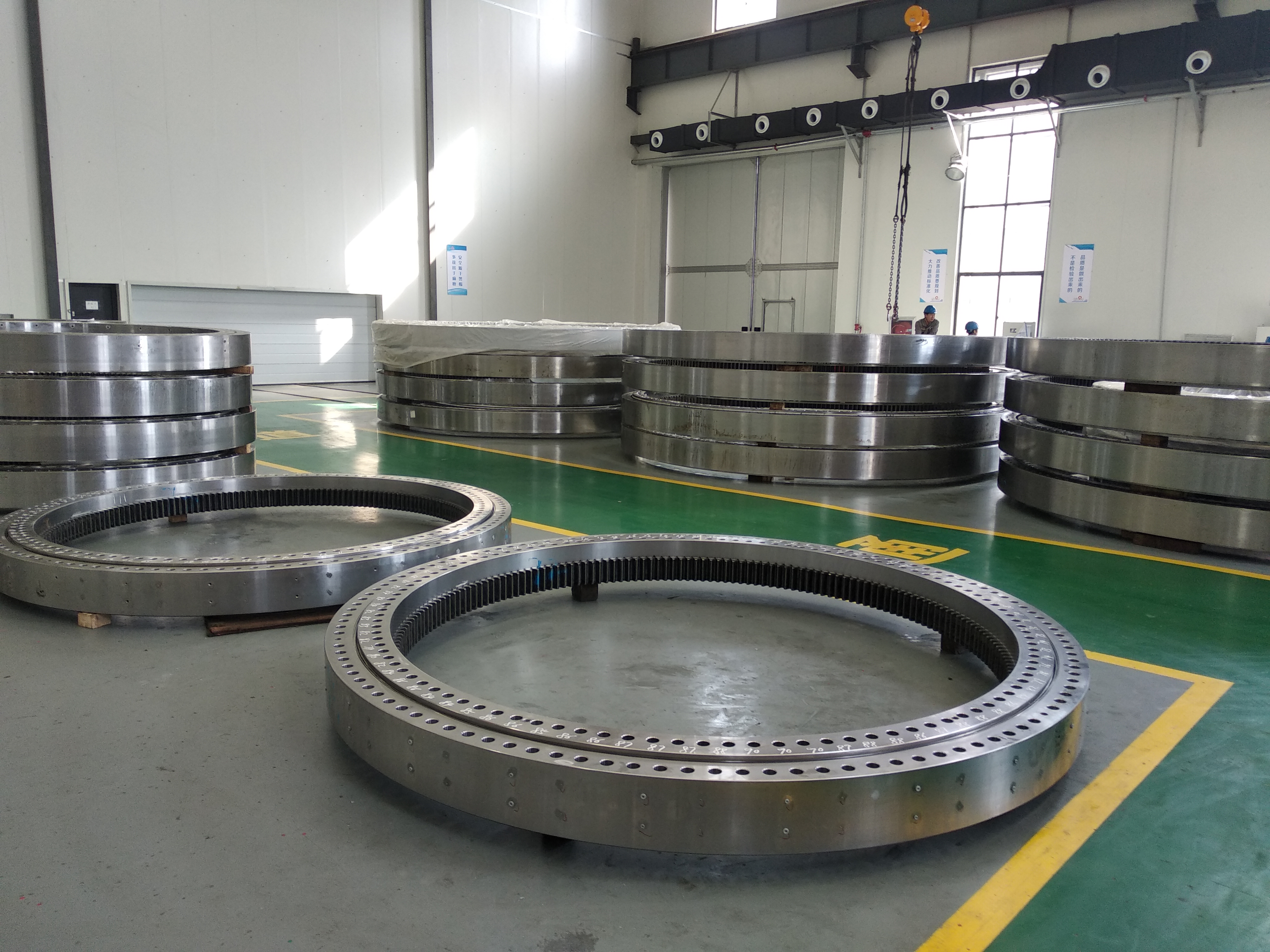

2) Yaw, pitch system and its bearings: Yaw bearing is an important part of the yaw system. It is located at the bottom of the engine room, bearing all the mass of the main drive system of the wind turbine generator, and transmitting the aerodynamic thrust to the tower for accurate and timely adjustment of the windward angle of the wind turbine. The variable pitch system is used to adjust the windward direction of the blades; the pitch bearing is installed between the blade and the hub, and the inner and outer rings are connected with the blade and hub through bolts, so that the blade can rotate relative to its axis to achieve the purpose of pitch.
