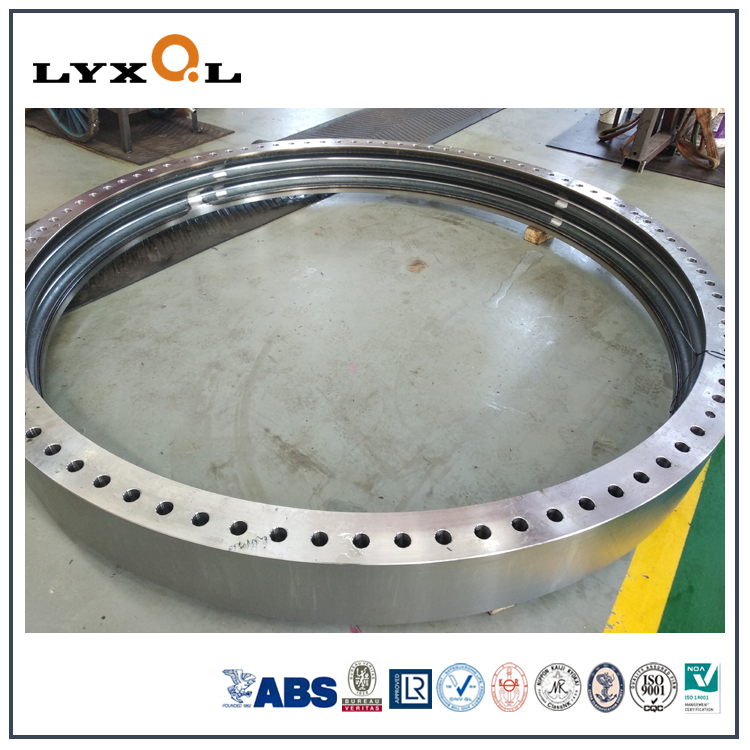

Good quality Single row Ball Slewing Bearing without gear

General introduction:

The single row ball series slewing bearing has a rectangular section, which is the most common in daily life, and has the characteristics of high stability and high cost performance. It is widely used in engineering machinery, construction machinery, marine machinery and other fields. The slewing bearing provides a variety of solutions for medium to heavy applications.

Characteristic:

The internal configuration of this slewing bearing consists of a rectangular cross-section with a deep Gothic arched raceway and maximum ball complement. Thus, a four-point contact design is formed, which can provide excellent torque, thrust and radial load capacity. Over the years, we have optimized every data of slewing bearing to match the service life and reliability required by customers. These are the main problems in these applications.

Advantages of single row ball slewing bearing:

1. Compact structure

2. Light weight

3. single row ball bearing can bear axial force, radial force and overturning moment at the same time

Components and material of single row ball slewing ring

1. Outer ring--42CrMo, 50Mn,S48c, C45

2. Inner ring--42CrMo, 50Mn,S48c, C45

3. Balls-- Gcr15SiMn, Gcr15

4. Retainer or cage--nylon, steel, brass

5. Seal--rubber

Technical Parameter

<
