Single Row Ball Slewing Bearing

LYXQL is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball bearings, roller bearings and precision bearings as per customer’s different technical requirements.
Slewing bearing is also called slewing ring, slewing ring bearing, turntable bearing, and rotary bearing. Slewing ring bearing is a bearing that able to bear axial load, radial load and overturning torque. Under normal circumstances, slewing rings have their own mounting holes, lubricant holes and seal holes, to meet the different needs of the various host working under the various conditions;
On the other hand, slewing bearing itself has characteristics of compact structure, guide rotating convenient, easy to install and maintaining easily.
LYXQL single row ball slewing ring bearings are usually used for low revolution while shaking and strained with an enormous axial force, moment and in some parts with radial force simultaneously.
Consequently the requirements for loading are stricter than ordinary bearings. If the selection of the slewing ring bearing has been wrong it will cause a great damage. Hence it is necessary to evaluate the exact forces acting on the slewing ring bearing and to select the suitable slewing ring bearings.
The single row ball slewing ring bearing is composed of 2 seat-rings. The balls contact with the circular race at four points, via which the axial force, radial force and resultant moment may be born simultaneously.

Structure:
Single row ball slewing bearing has three different types:

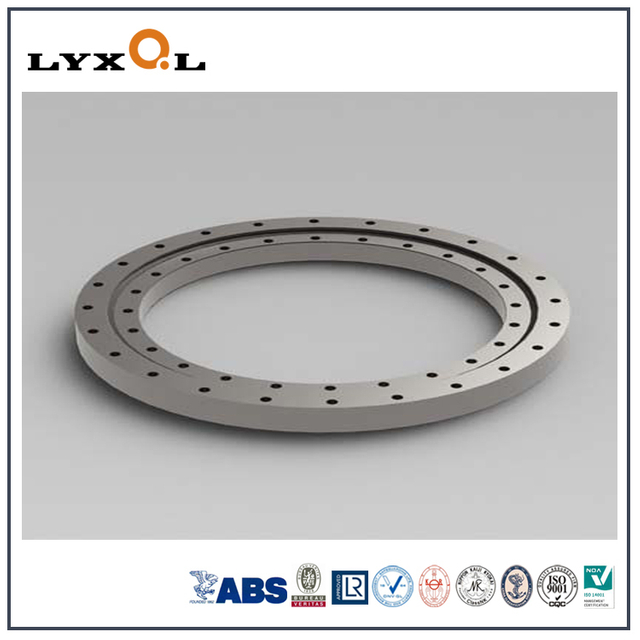

Single row ball slewing bearing with no gear

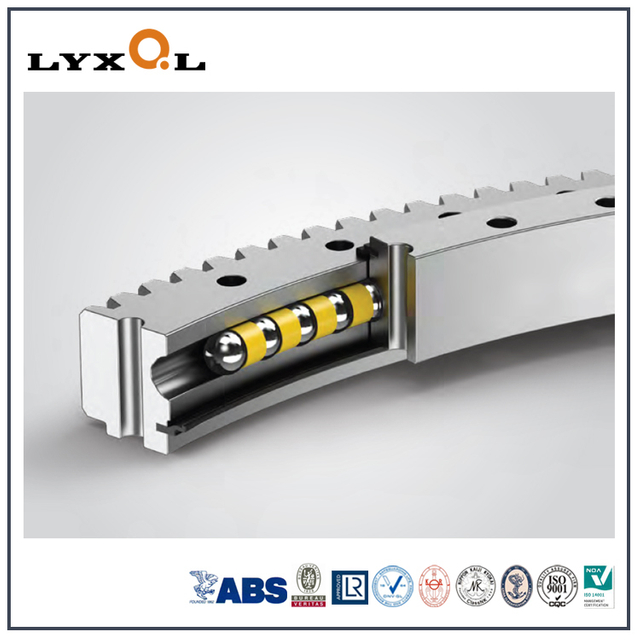

Single row ball slewing bearing with external gear

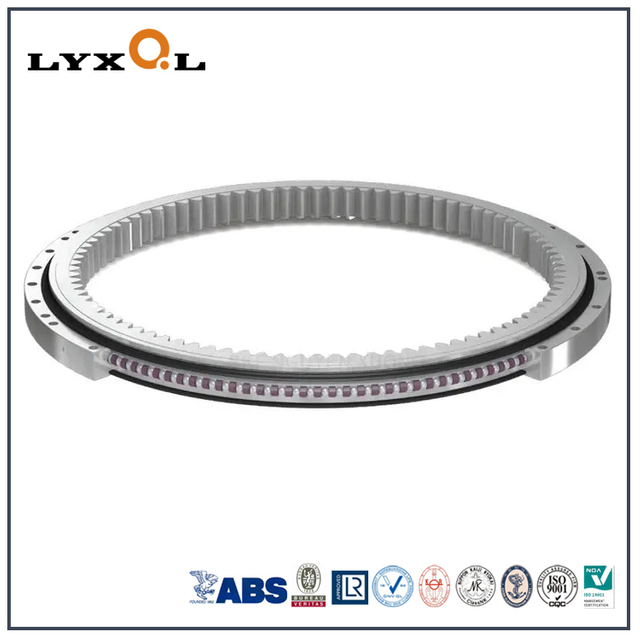

Single row ball slewing bearing with internal gear

Features
Single row ball slewing ring bearings have following features:
Compact in structure and light in weight.

Application:
Single row ball slewing ring bearings are widely used in slewing conveyers, welding arm and positioned, medium duty cranes, excavators and other engineering machines
