Slewing Ring Bearings with Dual Flanges (flanges in outer ring and inner ring)

Availability:
Quantity:

Slewing bearings (also called slewing rings, slewing ring bearings, slew bearings, slew rings, slew ring bearings, swing bearings, turntable bearings) are machine elements that can simultaneously transmit axial and radial forces as well as tilting moments.

LYXQL can design and make standard type and non-standard flanged slewing rings as per customer’s special requirements. LYXQL can produce slewing bearings with outer diameter from 1500mm to 18000mm.

1. Flanged slewing bearing is a special slewing ring bearing, it can have one flange in the outer ring, or one flanged ring in the inner ring, even it can have one flange in both inner ring and outer ring

2. Structure
flanged turntable bearing has three different types:

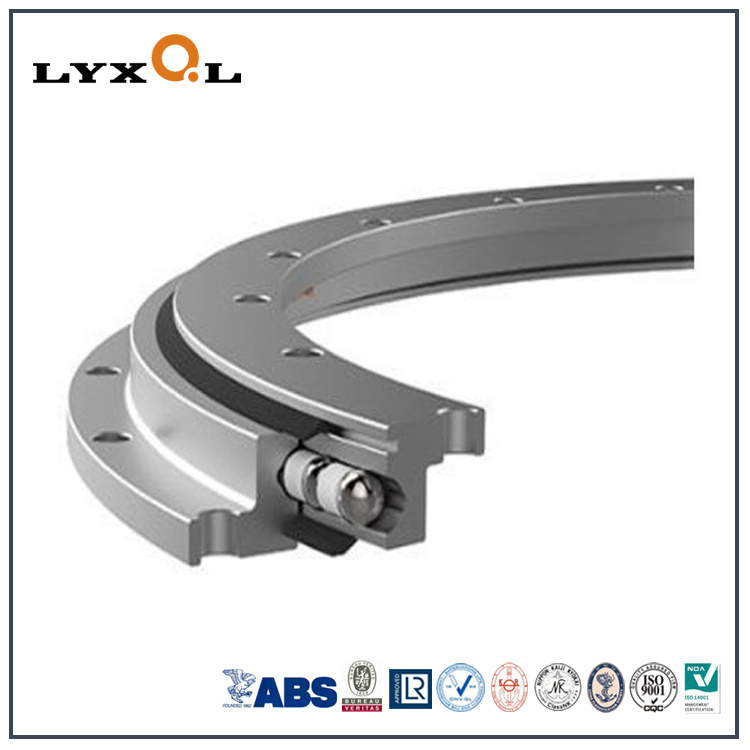

slewing bearings with dual flanges (external flange and internal flange)

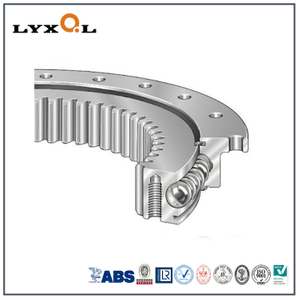

Slew bearings with outer flange and inner gear

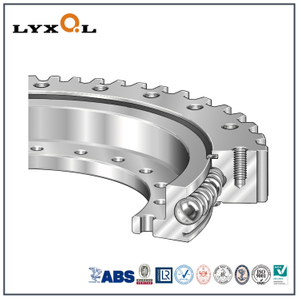

slewing rings with outer gear and inner flange

3. Features
Compact structure and easily installment.

4. Application
Flange slewing bearings are widely used on tow trucks, and other applications are the same as trailer bearing, such as lifting & transport machinery, mining machinery, construction machinery, excavator, concrete machine, paper machine, plastic and rubber machine and steel plant
