High Quality Roller Yaw Bearing for Wind Generator
Luoyang Xinqianglian Slewing Bearing Co., Ltd. ( Hereinafter referred to as the LYXQL) founded in 2003, is located in the ancient capital of nine dynasties Luoyang in Henan province. LYXQL is a national key high-tech enterprises and become a GEM listing company successfully on July 13,2020 (stock code "300850").

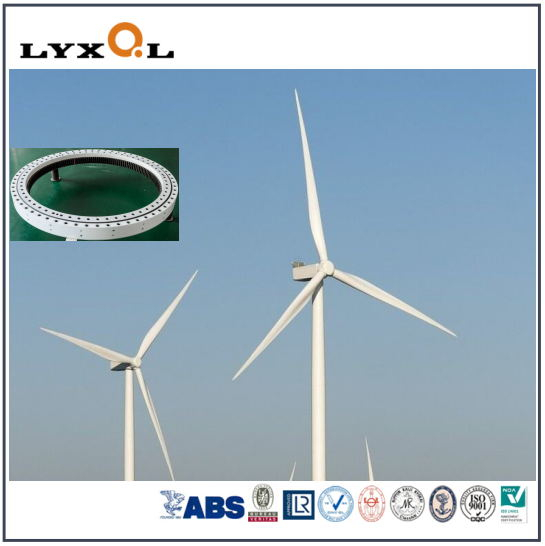

LYXQL High Quality Roller Yaw Bearing is an important part of Wind Generator
.Its work safety, reliability requirements are very high. Roller High Quality Yaw Bearing is characterized by low speed and high load. LYXQL Roller High Quality Yaw Bearing for Wind Generator is composed of two seat rings, with compact structure, light weight, high manufacturing accuracy, small assembly clearance, and high requirements for installation accuracy. The rollers are arranged in a 1:1 cross.
LYXQL High Quality Yaw Bearing for Wind Generator have a series of advantages such as small size, high rotation accuracy, strong resistance to deformation, large carrying capacity and flexible structural design. LYXQL Roller High Quality Yaw Bearing for Wind Generator can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.The product outer dimension can be from 500mm to 25000mm.
LYXQL Roller High Quality Yaw Bearing for Wind Generator-----Technical Data:
1. Material: 42CrMo, 50Mn
2. Precision: P0. P6. P5.
3. Outside diameter: 500~25000mm
4. Cage/retainer: Nylon or aluminum
5. Gear type: non-geared, internal gear and external gear, gear hardened
LYXQL Roller High Quality Yaw Bearing----Surface treatment:
1: black surface treatment
2: Surface sandblasting and painting
3: Surface chrome plating
4: Surface spray zinc treatment
5: Surface phosphating treatment
6: Dacromet treatment
LYXQL High Quality Yaw Bearing-- Advantages:
1. Good quality and competitive price
2. Trial order accepted
3. ISO certified company
4. OEM and ODM accepted
5. Can design and produce non-standard models according to the special requirements of customers.
6. Can provide BV, LR,DNV,CCS, NK,KR, GL,ABS certificate
LYXQL High Quality Roller Yaw Bearing for Wind Generator- Maintain
1. The slewing bearing should be greased regularly. According to different types of slewing bearings, the specific grease filling time is as follows: the ball type is filled with grease every 100 hours of operation; the roller type is filled with grease every 50 hours of operation .
2. The sundries on the surface of the slewing ring should be removed frequently during use, and the sealing strip of the slewing ring should be checked for aging, cracking, damage or separation. If one of these conditions occurs, the sealing strip should be replaced in time to prevent debris from entering the raceway and the loss of grease.
3. Pay close attention to the operation of the slewing ring during use. If you find that the noise, impact, or power suddenly increases, you should stop the machine immediately for inspection until all the faults are eliminated, and disassemble and inspect if necessary.
