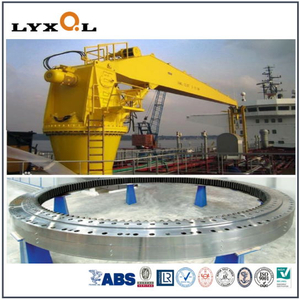

Large Turntable Cross Roller Slewing Bearing for Deck Crane

Large Turntable Cross Roller Slewing Bearing for Deck Crane

Luoyang Xinqianglian Slewing Bearing Co., Ltd.  ( Hereinafter referred to as the LYXQL) founded in 2003, is located in the ancient capital of nine dynasties Luoyang in Henan province. LYXQL is a national key high-tech enterprises and become a GEM listing company successfully on July 13,2020 (stock code "300850").

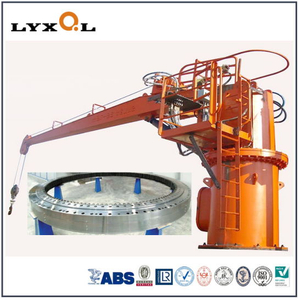

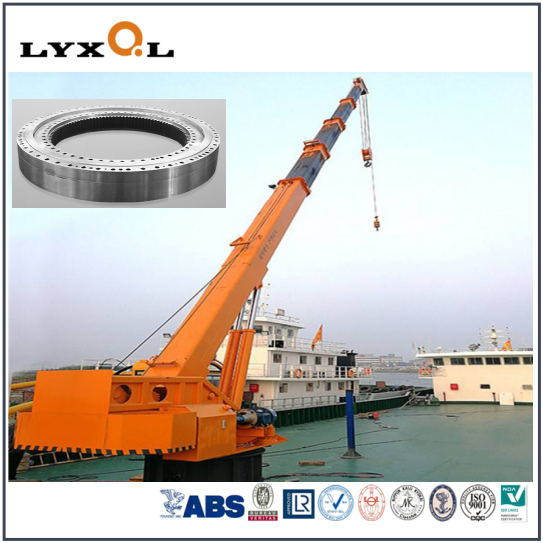

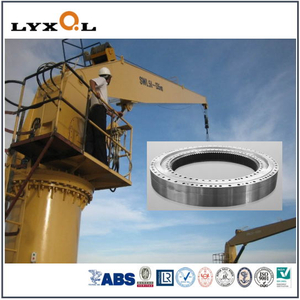

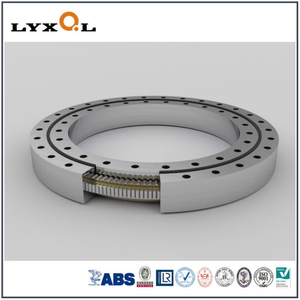

LYXQL Large Turntable Cross Roller Slewing Bearing is an important part of Deck crane .Its work safety, reliability requirements are very high. Large Cross Roller Slewing Bearing is characterized by low speed and high load. LYXQL Turntable Large Cross Roller Slewing Bearing for Deck Crane is composed of two seat rings, with compact structure, light weight, high manufacturing accuracy, small assembly clearance, and high requirements for installation accuracy. The rollers are arranged in a 1:1 cross.

LYXQL Large Cross Roller Slewing Bearing for Deck crane have a series of advantages such as small size, high rotation accuracy, strong resistance to deformation, large carrying capacity and flexible structural design.

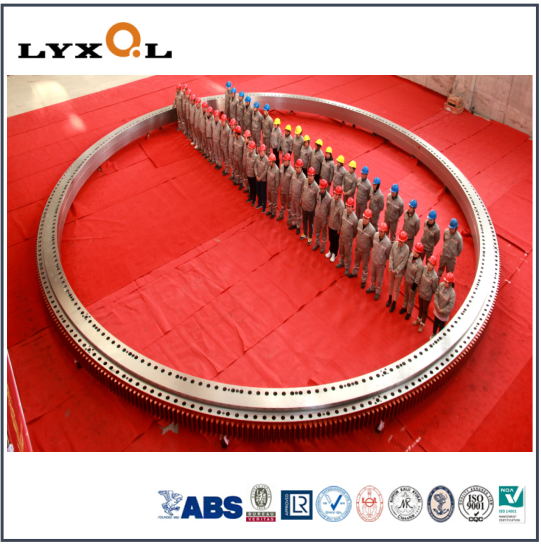

LYXQL Large Cross Roller Slewing Bearing for Deck Crane can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.The product outer dimension can be from 500mm to 25000mm.

LYXQL Turntable Cross Roller Slewing Bearing for Deck Crane------Technical Data:
1. Material: 42CrMo, 50Mn
2. Precision: P0. P6. P5.
3. Outside diameter: 500~25000mm
4. Cage/retainer: Nylon or aluminum
5. Gear type: non-geared, internal gear and external gear, gear hardened

LYXQL Turntable Cross Roller Slewing Bearing---Teeth Structure

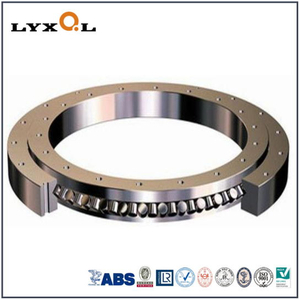

Slewing ring bearings with no gear
Slewing ring bearings with external gear

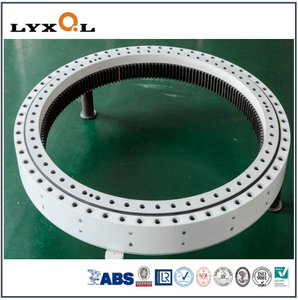

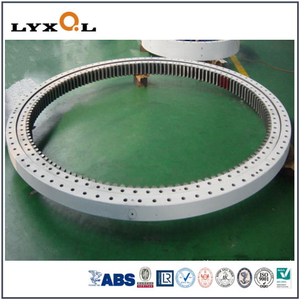

Slewing ring bearings with internal gear

LYXQL Turntable Cross Roller Slewing Bearing for Deck Crane----Surface treatment:

1: black surface treatment

2: Surface sandblasting and painting

3: Surface chrome plating

4: Surface spray zinc treatment

5: Surface phosphating treatment

6: Dacromet treatment

LYXQL Large Cross Roller Slewing Bearing for Deck Crane- Seal

The sealing of the cross roller slewing bearing without teeth is mainly to prevent the filled grease from leaking out, and also to prevent external dust, impurities and moisture from entering the inside of the bearing and affecting the normal operation of the bearing.

Since most of the slewing bearings work under heavy loads and low speeds, the sealing form of the bearings adopts two structures: rubber seal ring seal and labyrinth seal. The rubber sealing ring itself has a simple structure, small space occupation and reliable sealing performance. The disadvantage is that it is prone to early aging under high temperature conditions and loss of airtightness. Therefore, under high temperature conditions, the slewing bearing should adopt a labyrinth seal. In addition, the material of the sealing ring under high temperature is high temperature resistant fluoro rubber.

LYXQL Cross Roller Slewing Bearing for Deck Crane------Packaging Details:
Step 1: Covered with the anti-rust oil
Step 2: wrapped with the plastic film;
Step 3: Packed with Kraft paper and professional belts;
Step 4: Put into wooden box to avoid the rust or the moist;
Remark: Normally, plastic film+ Kraft +belt+ wooden box, but customized packing available,
